MOES WiFi Mini DIY Smart Curtain Switch Module APP Voice Control Electric Curtain Motor Relay

Main Features:

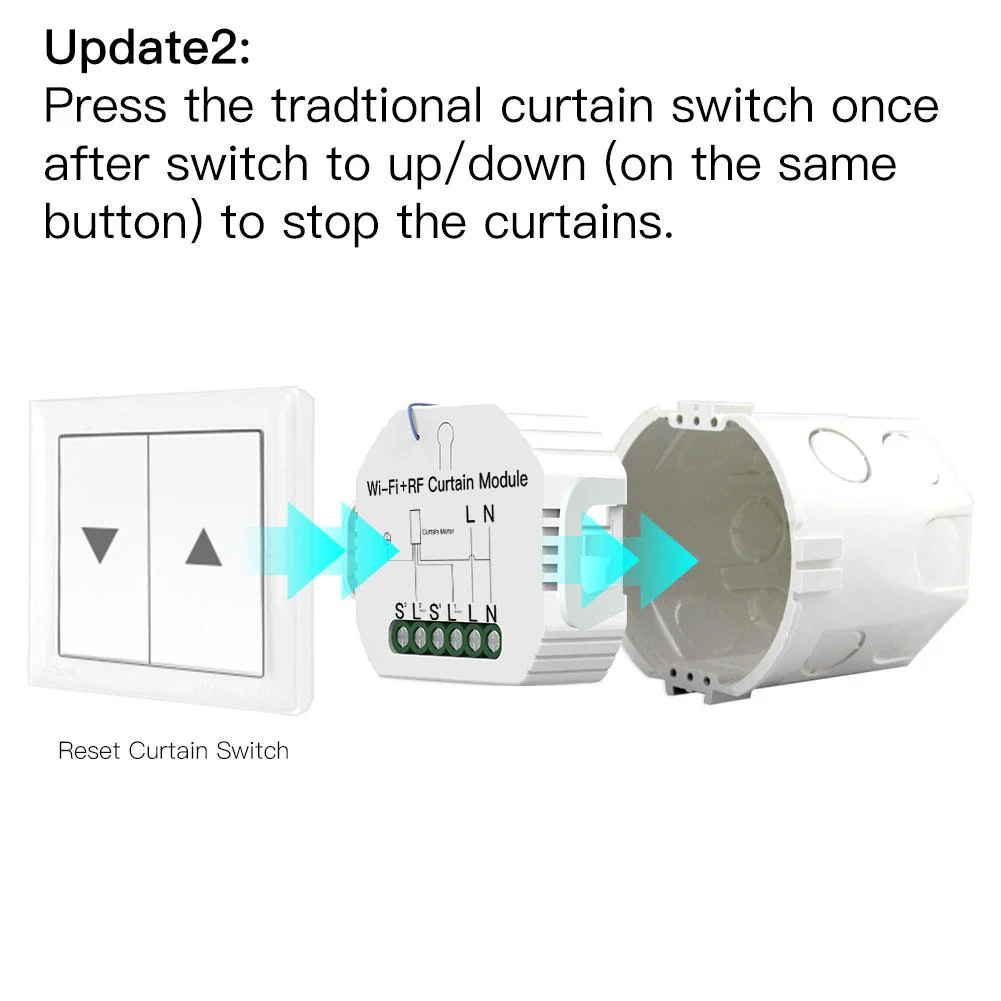

• Use with Much More Convenience with stop function on traditional switch:A really good substitution for one more new smart roller blindsswitch to work with your traditional curtain switch to realize intelligence.Press your traditional curtain switch once after switch to up/down (on the same button)to manually stop your curtains easily.Also,it can be connected with your roller blinds shutter motor to smartly control your curtains.
• RFand Wireless Remote Control with a much easier pairing mode for adding the device with WiFi and Bluetooth connected:Enable to remotely control your connected appliances on your smart phone wherever you are. 4 b/g/n Networks provides the needed connection to the DIY Switch Module without the need of a separate HUB.(Compatible with Android&iOS for Smart Life and Tuya App.)More importantly,this curtain switch module is built-in RF433 frequency,so it can be controlled with remote control switch with encoding 1527.
• Hands-free Voice Control:Compatible with Amazon Alexa and Google Home for easy voice control,providing your smart life for controlling curtains with much more convenience.
• Timer Setting:Take full control of your roller blinds intelligently with the timer feature on your App,which enables to open / close them at a specific time automatically. Automate your home curtains via 3 timing types:schedules timing,countdown timing and loop timing.
• Family Sharing:One device can be shared to different family members that means one ID is able to control multiple curtains,or multiple users can control one curtain.Control your smart home with your family members or friends together.

Note before order：

1. Please check your motor is with 4 wires before make your order(Note: Motor not included, need a separate purchase.)
2. This roller blinds switch module can not work with a DC motor.
3. This switch module is a Wi-Fi version only, not with RF, so it can not work with the RF remote in our store.

Parameter:

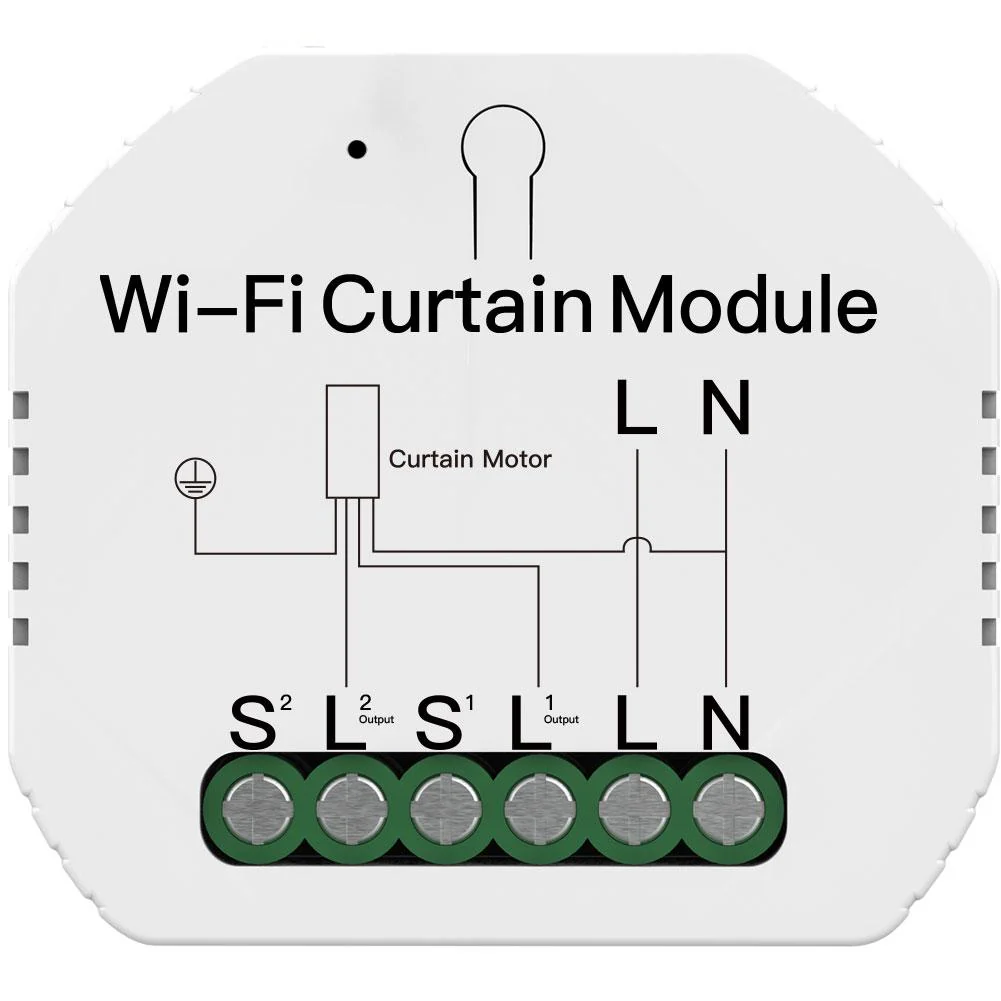

• Product type: WiFi Curtain Module
• Voltage: 90-250V AC 50/60Hz
• Current: 2A
• Power Load:500W (Max.)
• WiFi frequency: 2.4GHz WiFi
• Operation temp: -10℃-+40℃
• Case temp: Tc +80℃(Max.)
• Operation range:≤200m

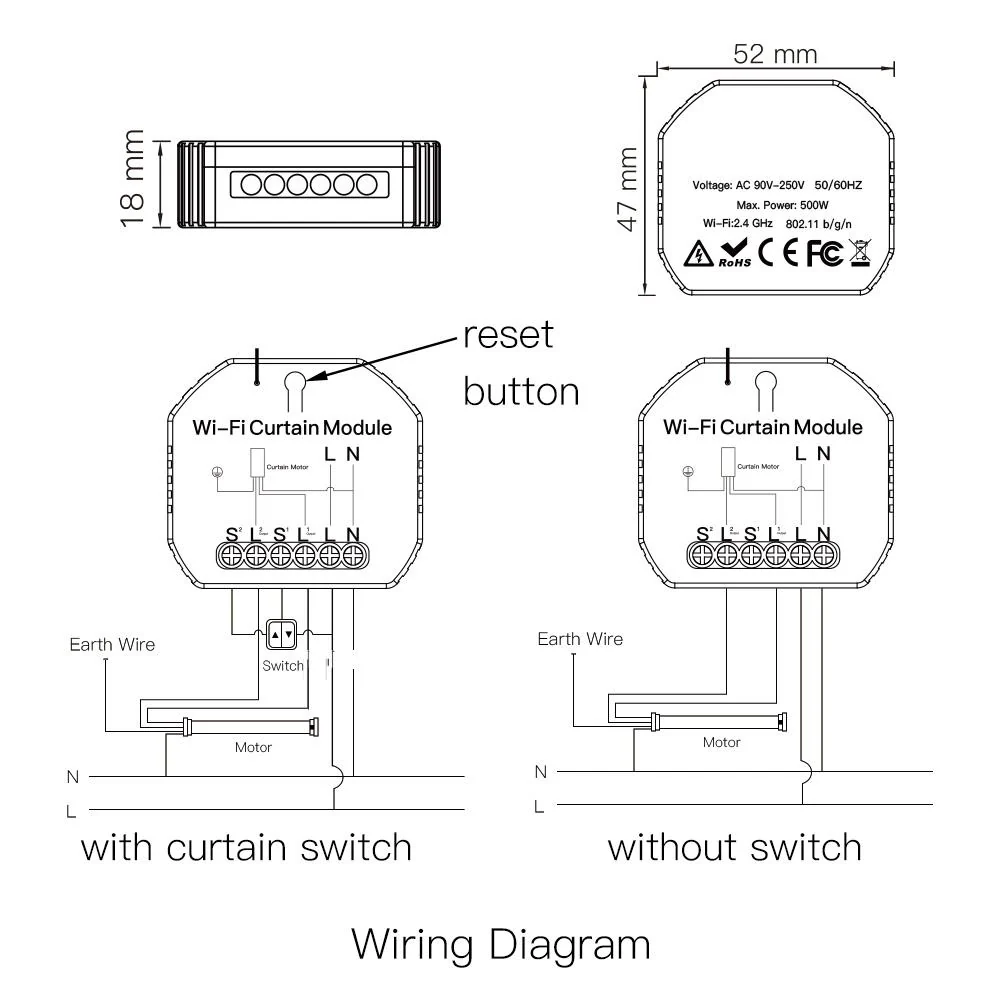

• Dims(W*D*H): 52*47*18mm(without clip)
• IP rating: IP20
• Warranty:1year

Package Listing:

• WiFi Curtain Module*1(with mounting clip)
• Instruction Manual*1

Note: Motor not included, need a separate purchase.

User Manual:

Q&A:

1. Q: Does this work with Google Home?

  A: Yes, it does. And it’s also compatible with Alexa.

2. Q: Do I need to buy a hub to work with the curtain module.

  A: No,  you need to buy a hub and no hub is required for the module.

3. Q: Can I control the module with my own remote control switch?

  A: This type of curtain switch module has no RF433 built-in, so it can not work with the RF433 remote control switch in our store.

4. Q: Shall I buy a smart curtain switch to work with this module?

   A: No, you can just connect the module to your traditional curtain switch to realize intelligence.

5. Q: What should I do if I can’t configure the curtain module?

A:

a: Please check whether the device is powered on.

b: Make sure your mobile and curtain module are under the same 2.4GHz Wi-Fi network.

c: Whether it’s in good internet conditions.

d: Make sure the password entered in the App is correct.

e: Make sure the wiring is correct.

6. Q: Which products can I control with the device?

   A: Curtains, shutter, blind...

7. Q: What happens if the wifi goes off?

   A: You can still control the device connected to the curtain module with your traditional curtain switch and once the wifi is active again the device connected to the curtain module will connect automatically to your wifi network.

8. Q: What should I do if I change the Wi-Fi network or change the password?

   A: You can connect the module to the Wi-Fi network according to the App User Manual.
